Prysmian FP Plus 1.5mm 16.5A 2 Core & Earth Red Cable 100M Drum
£267.54
£222.95
In stock
Code
FPPLUS2X15REDC
Prysmian FP Plus 1.5mm 16.5A 2 Core & Earth Red Cable 100M Drum. FP PLUS - an enhanced version of FP200 - is a highly durable and dressable, easy to terminate and install fire resistant cable, using an enhanced variant of the unique Insudite damage resistant insulation system.
- Type: FP PLUS
- Number of Cores: 2 Core & Earth
- Conductor Diameter: 1.5mm2
- Length: 100M Drum
- Application: Fire Alarm, Voice Alarms & Emergency Lighting Circuits
- Conductors: Plain Annealed Copper
- Insulation: High performance damage resistant Insudite.
- Outer Sheath: Red
- Core Colours: Brown, Blue
- Current Rating: 16.5A
- Voltage Rating: 500V
- BS Number: BS 7629-1, BS 6387 Category CWZ, BS 5839-1:2002, EN 50200 Class PH30, BS 8434-1, EN 50200 Class PH60, BS 5266-1:2005, ISO 9001, BASEC Approved
- External Diameter: 8.2mm
- Cable Clip Required: AP7 RED PIRELLI
| Model Number | FP PLUS 2X1.5 RED C |
|---|---|
| Brand | Prysmian |
| Type | Fire Resistant Cable |
| Cable Number | FP Plus |
| Application | Emergency Lighting, Fire Alarm |
| Core Size | 1.5mm |
| Quantity | 100M Drum |
| Number of Cores | 2 |
| Core Colours | Blue, Brown |
| Sheath Material | Insudite |
| Sheath Colour | Red |
| Amperage | 16.5A |
| Voltage | 500V |
| Length | 100M Drum |
| Diameter | 9mm |
| Manufacturer Guarantee | 1 Year |
| Standards | BS 8434-2, BS7629-1, BS EN 50200 PH30, PH60, PH120, BS 5839-1, 6, 8 & 9, BS 5266-1, BS 8519, BS EN 60332-1-2, BS EN 60332-3-24 |
Write Your Own Review

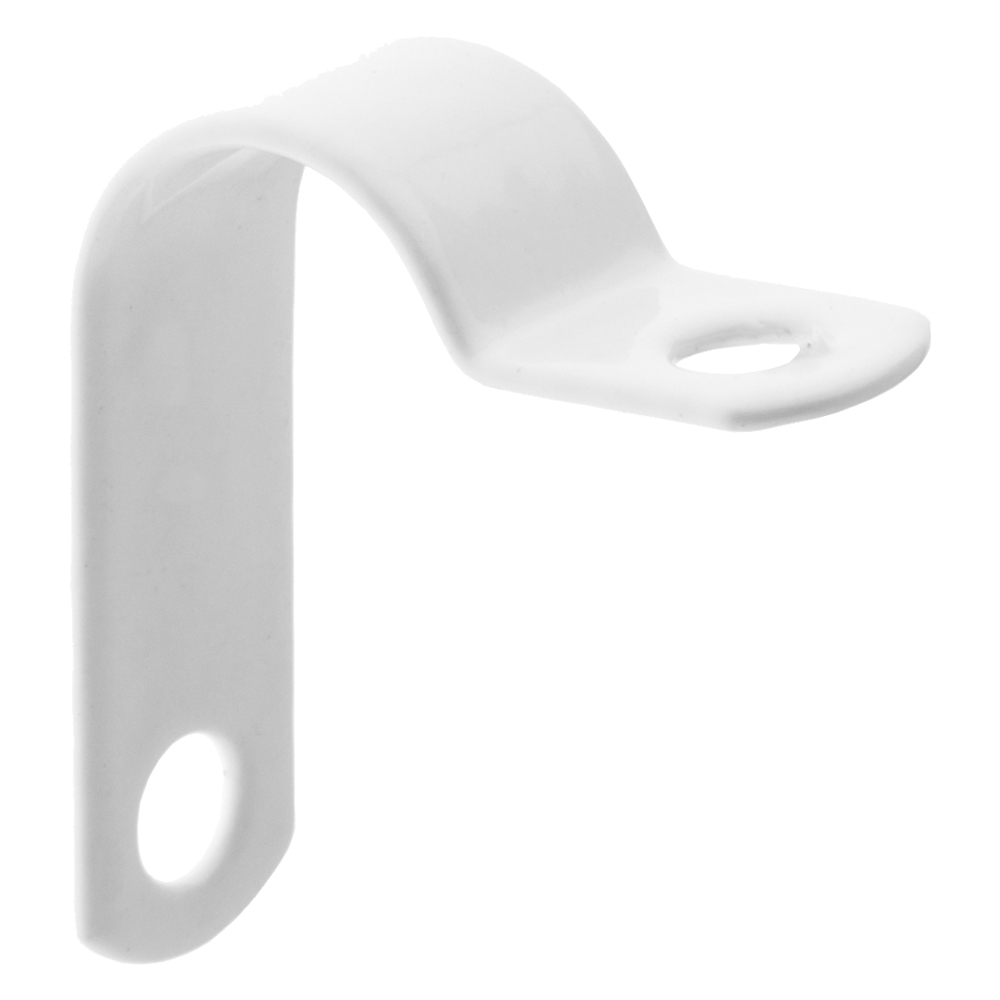

Standard Cable Clips
Cable sizes can vary slightly during production, we highly recommend that cable clips are checked prior to installation.

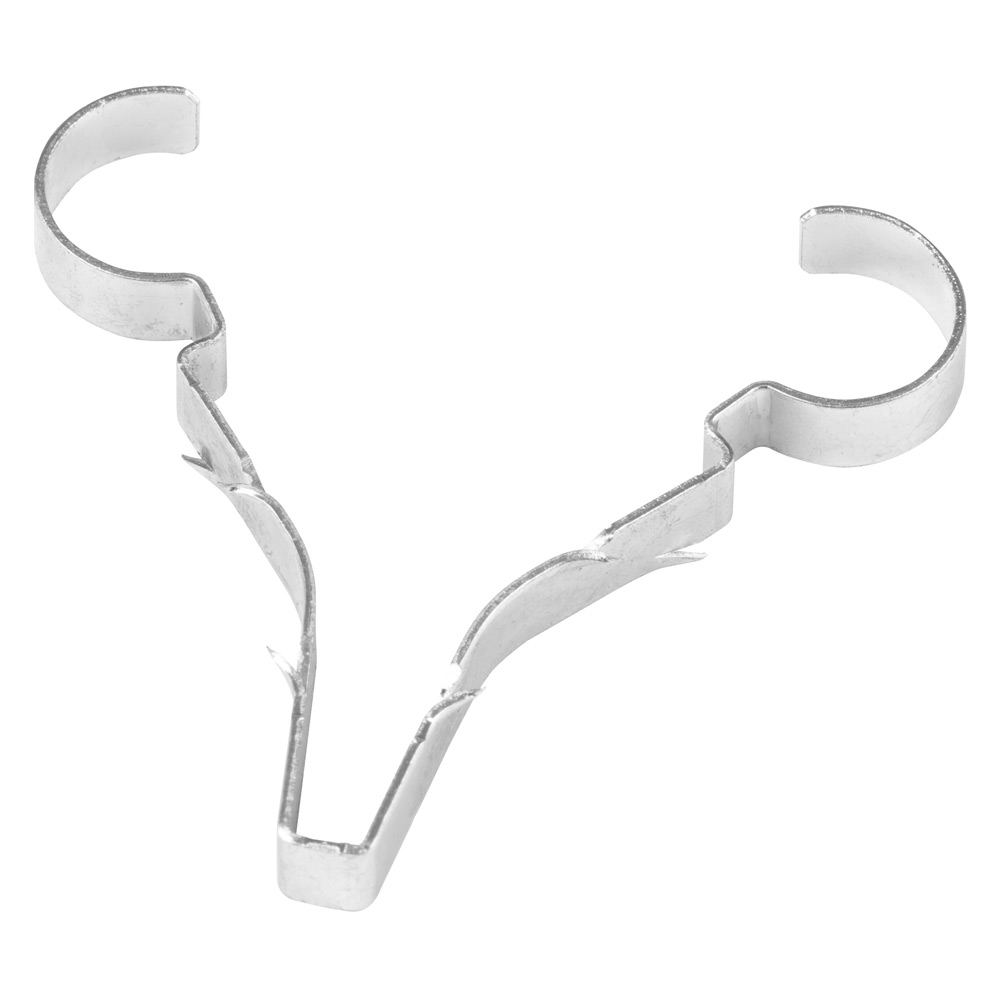

18th Edition Fire Rated Cable Clips
Cable sizes can vary slightly during production, we highly recommend that cable clips are checked prior to installation.
