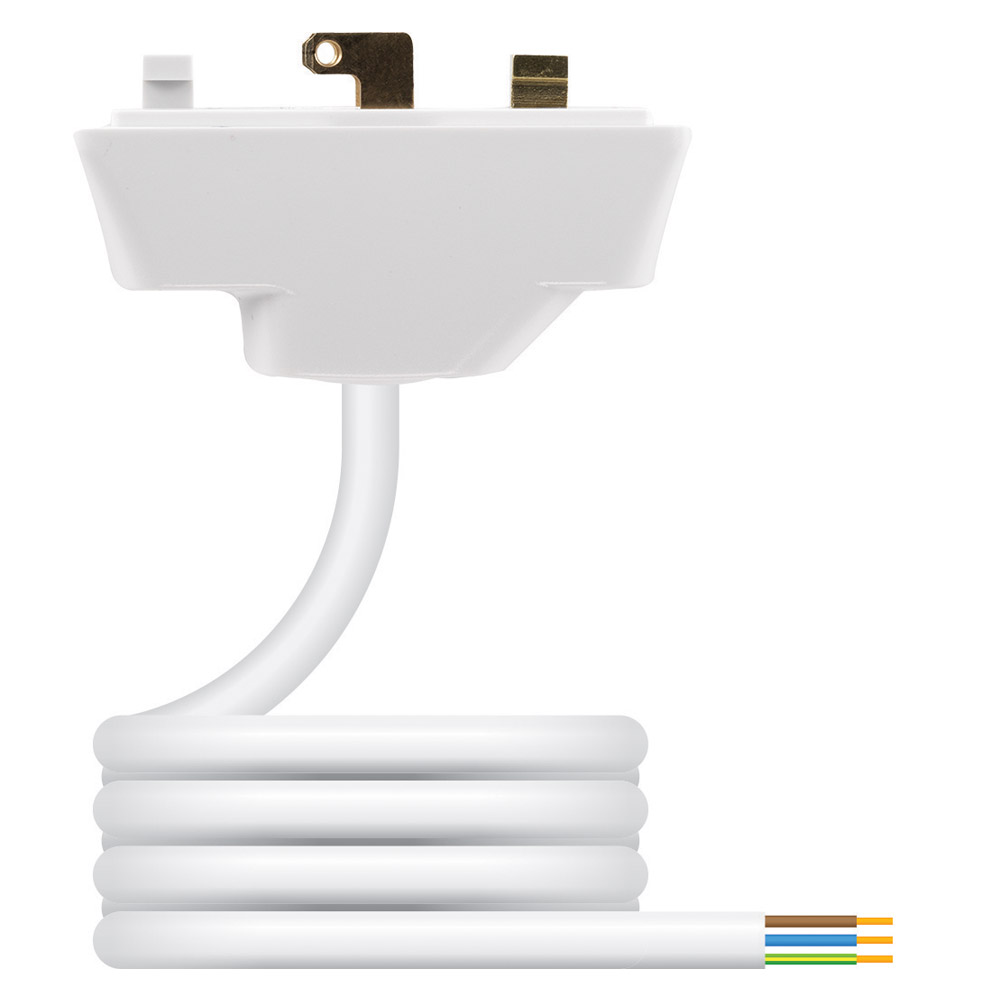

Klik P22 Ceiling Plug 6A 3 Pin White

Klik P22 a 3 pin plug in white, connects into a Klick socket providing a pluggable connection to a luminaire. Part of the Hager Klik lighting distribution connector system. Plug-in convenience and versatility for lighting. It is a unique modular plug and socket interface provides simultaneous mechanical and electrical connection in one click-in action. Luminaires can be connected in seconds, in absolute safety, without circuit isolation. All live contacts are inaccessible and the earthing connection is made before any other. Klik plugs and sockets feature solid brass terminals and phosphor bronze contacts for good conductivity.

• 6 Amp 230V AC

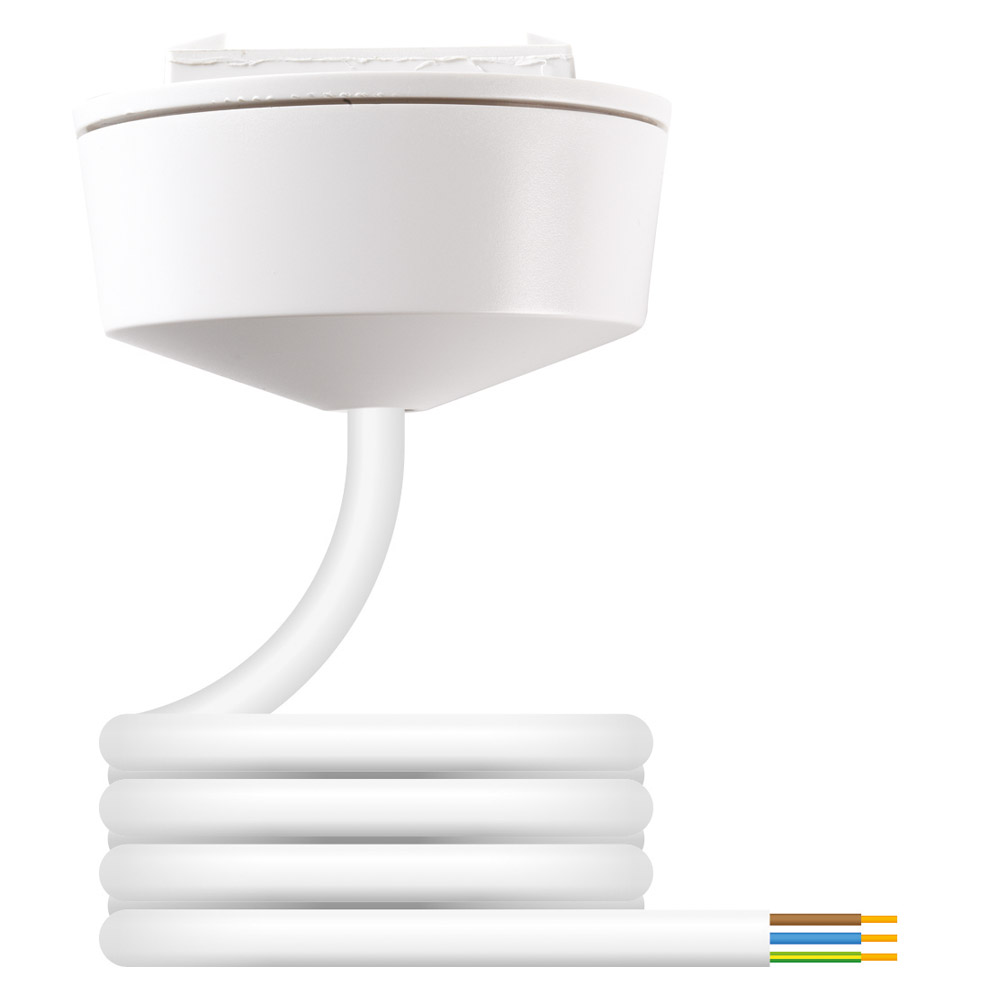

• P22 plug is supplied in a plug-in ceiling rose part number PCR2000
• Suitable for use with any klik 3 or 4 pin socket
• Plugs must not be fitted on the supply side of any installation, appliance side only
• Base terminals accepts 1 x 1mm2 conductor.
• Plugs have 3 terminations: live, neutral and CPC
• Static loading 5kg maximum
• Height: 57mm
• Width: 25mm
• Depth:44mm
• Inflammability: UL 94 V0
• Standards: BS 5733:2010 and BS 6972:1988
