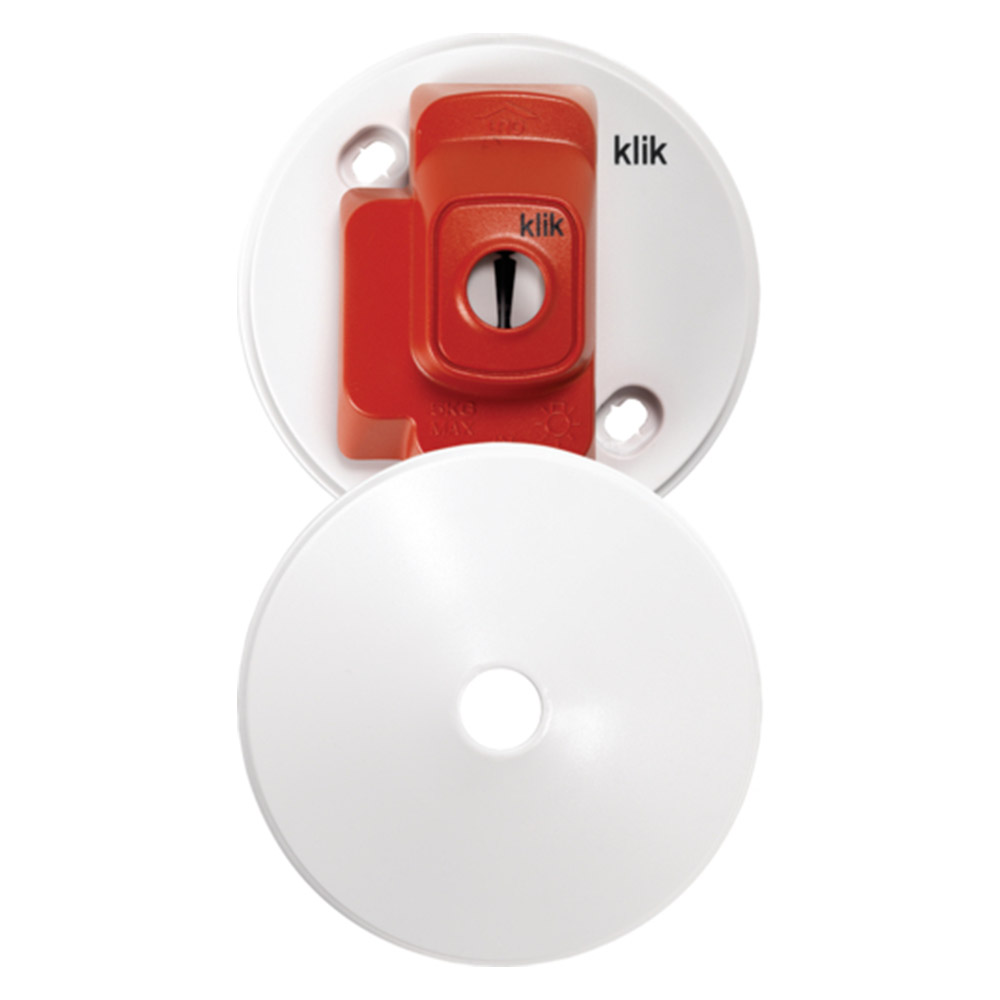

Klik CR64AX/2.0 Plug In Ceiling Rose 6A 4 Pin 2M PVC Flex White

Klik CR64AX/2.0 a 4 pin plug In ceiling rose pre wired with 2M of 0.75mm PVC flex in white, typically used in emergency lighting and part of the Hager Klik lighting distribution connector system. Plug-in convenience and versatility for lighting. It is a unique modular plug and socket interface provides simultaneous mechanical and electrical connection in one click-in action. Luminaires can be connected in seconds, in absolute safety, without circuit isolation. All live contacts are inaccessible and the earthing connection is made before any other. Klik plugs and sockets feature solid brass terminals and phosphor bronze contacts for good conductivity.

• Fits a standard BESA box, 50.8mm fixing
• Pre-wired klik ceiling roses reduces on-site installation time and cost
• Cable is prepared with barrel crimped ends, eliminates breakage and saves time on site
• PVC flexible cord, complies with BS 6141
• Cable: 0.75mm PVC flex
• 6 Amp 230V AC
• Provides loop-in terminal bank wiring within integral surface mounting socket base
• Base terminals accepts 2 x 4mm2 conductor
• Sockets have 5 terminations: live, neutral, CPC, auxiliary and loop-in
• Plugs have 4 terminations: live, neutral, CPC and auxiliary
• Static loading 5kg maximum
• Diameter: 75mm
• Height: 44mm
• Cable Length: 2M
• Inflammability: UL 94 V0
• Standards: BS 5733:2010 and BS 6972:1988
