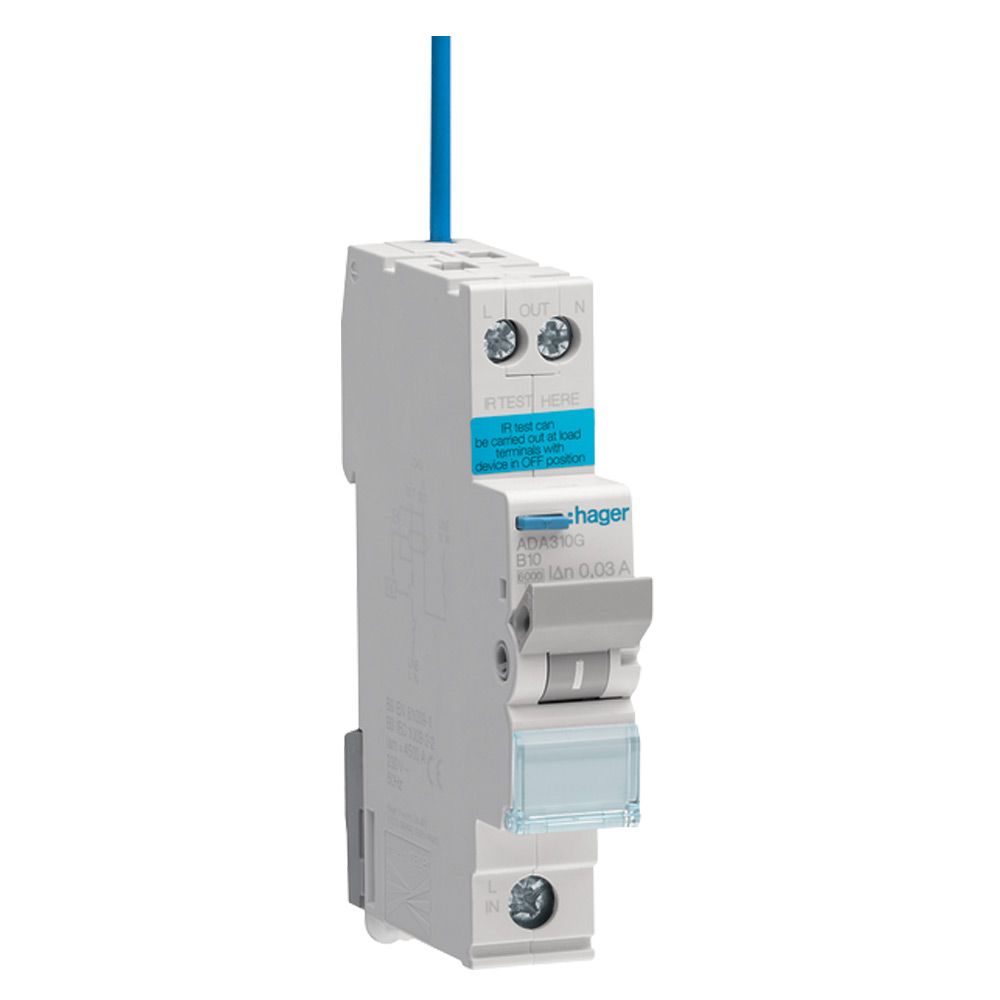

Hager ADA310G 10A RCBO Class A 30mA Single Pole 6kA Single Module
£21.54
£17.95
In stock
Code
ADA310G
Hager RCBO 10A Class A single pole 6kA single module, responds to both AC and pulsating DC residual currents. Suitable for installation in Design 10 Hager consumer units. 18th Edition compliant and suitable for all electrical applications including domestic.
- Class: A (AC & pulsating DC sensitive)
- Current rating: 10A
- Breaking capacity: 6kA
- Trip curve: B
- Trip current 30mA
- Terminal capacity: 16mm2
- Number of modules: 1
- Poles: 1
- Flying neutral lead: 300mm
- Height: 83mm
- Width: 18mm
- Depth: 75mm
- Voltage: 230V
- Standards: BS EN 61009-1, BS IEC 1009-2-2
- Warranty: 2 years
| Model Number | ADA310G |
|---|---|
| Brand | Hager |
| Rating | 10A |
| Rated Tripping Current | 30mA |
| Trip Type | B Curve |
| Breaking Capacity | 6kA |
| Terminal Capacity | 16mm2 |
| Modules | 1 |
| Poles | 1 |
| Voltage | 230V |
| Height | 83mm |
| Width | 18mm |
| Depth | 75mm |
| Standards | BS EN 61009-1, BS IEC 1009-2-2 |
